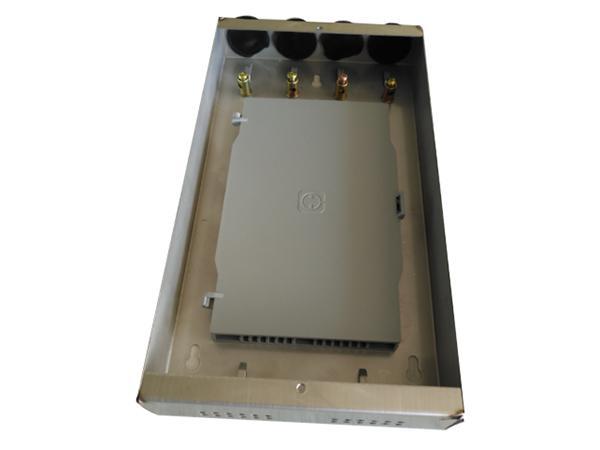

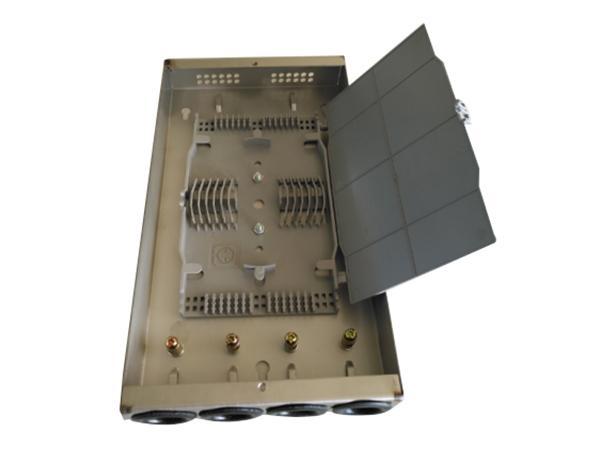

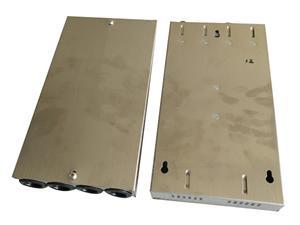

FTTH Fiber Optic Terminal Box

Applications
The FTTH fiber optic terminal box is used for direct connection or divergent connections of an indoor optical fiber cable, with one end of the terminal box connected to the optical fiber cable, and the other end attached to the pigtail. Wall mounting is the best installation method for this fiber optic terminal box.

Materials
The FTTH fiber optic terminal box is made of a stainless steel plate or a galvanized steel sheet with a surface that has been plastic sprayed.

Size
Name Dimensions/mm (height×width×depth) Capacity (load) Notes
12 loads FTTH fiber optic terminal box 250×140×35 12 Stainless steel plate
24 loads FTTH fiber optic terminal box 250×140×35 24 Stainless steel plate
48 loads FTTH fiber optic terminal box 250×140×35 48 Stainless steel plate

Features
1. The compact structure saves space.
2. The fiber optic terminal box features an optical fiber cable fixation and ground device.
3. A significant amount of optical fiber disk storage space.
4. The splice tray of FTTH fiber optic terminal box can be stacked or otherwise impacted with no damage.
5. Users can choose a specific device adaptor.

Hengchang is a specialized fiber optic communication equipment manufacturer since 1994, besides the FTTH fiber optic terminal box, we are offering FTTX distribution solutions like for FTTC fiber to the cabinet, FTTP optical fiber laid to the premises, FTTB fiber to the building, etc. We have extensive experience in making data communication equipment, always provide quality FTTH distribution products for global customers.
