Application

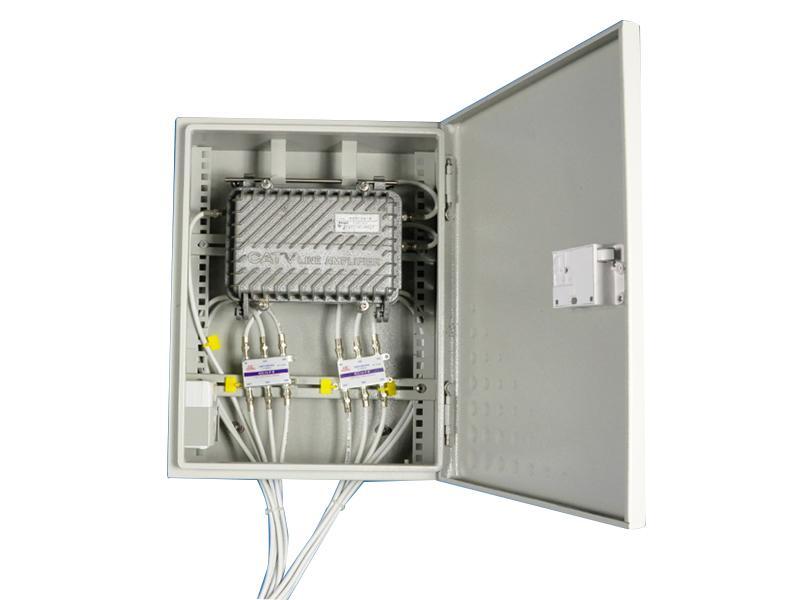

The audio video signal amplifier splitter box is used for installation of TV amplifiers and signal distributors in broadcast and television networks. With protection against water, sand and theft, as well as a mobile stand, the installation process is flexible. With its concealed installation style, the signal amplifier splitter box saves space.
Materials
The audio video signal amplifier splitter box is made using a stainless steel plate or galvanized steel sheet with an electrostatic plastic sprayed surface. The spray color is greyish white, or customized as per client requirements. The splitter box features a smooth surface with a non-corrosive design, allowing it to be used both indoors and outdoors.
| Type | | | | | | |
| Dimensions (Height*Width *Depth) | 450*350*200 | 450*350*200 | 280*330*90 | 280*330*90 | 270*220*70 | 270*220*70 |
| Material | 1.0mm Stainless steel plate | 1.0mm Galvanized steel sheet | 1.0mm Stainless steel plate | 1.0mm Galvanized steel sheet | 0.8mm Stainless steel plate | 0.8mm Galvanized steel sheet |
| Device space | The distribution device can be installed. | |||||
| Temperature control type | None | |||||
| Intelligent monitoring | The equipment is installed optionally. | |||||
| Install style | Wall mounting, hanging on the pole or concealed. | |||||
Features
1. The audio video signal amplifier splitter box facilitates the installation of other communication devices and an even distribution of UPS power.
2. The door of audio video signal amplifier splitter box is of a concealed design, which saves space.
Hengchang is a truthful optical fiber broadcast communication equipment manufacturer since 1994, besides the audio video signal amplifier splitter box, we are offering cable distribution frame, fiber distribution box, as well as FTTX distribution solutions. We have extensive experience in making data communication equipment, always provide quality signal amplifier splitter box for global customers.
