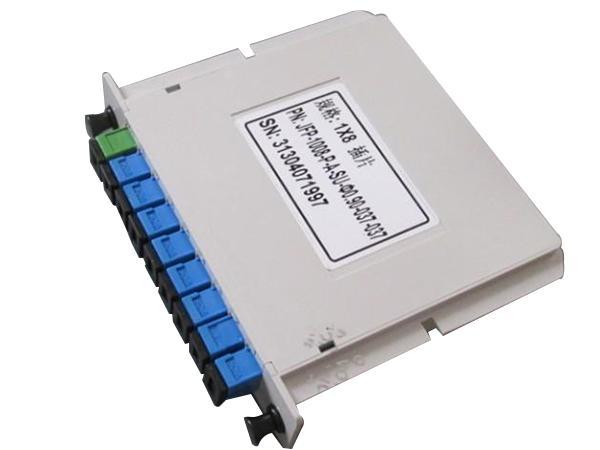

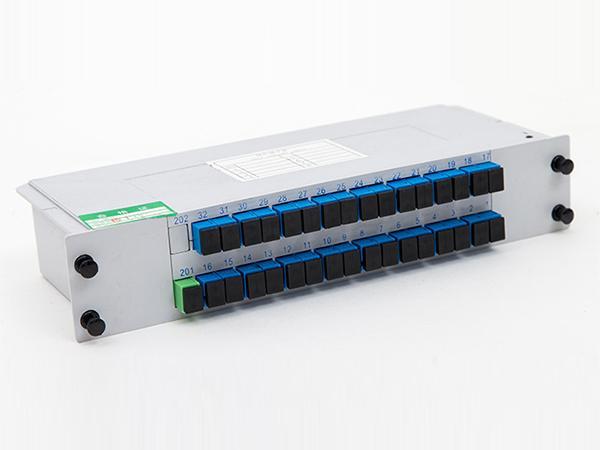

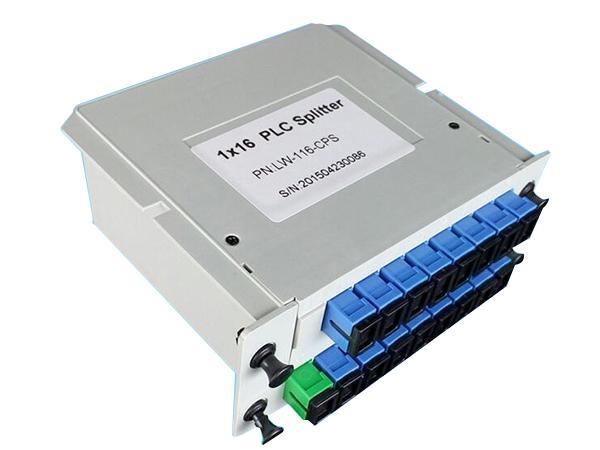

Plug-in Type Optical Beam Splitter

Application
The plug-in optical beam splitter is primarily used in corridor optical beam boxes, and by increasing the number of plug in optical beam splitter used, the port will be extended. This insertion module uses a PLC optical beam splitter, and is compatible with SC or LC optical connectors.

Parameters
Unit 1*2 1*4 1*8 1*16 1*32
Dimensions/ mm (Height*Width*Depth) 130*100*25 130*100*25 130*100*25 130*100*50 267*100*50
Working broadband nm 1260~1610
Insertion loss dB ≤3.8 ≤7.2 ≤10.5 ≤13.8 ≤17.1
Polarization dependent loss dB ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Homogeneity dB ≤0.5 ≤0.6 ≤0.8 ≤1.0 ≤1.5
Return loss dB ≥55
Directivity dB ≥55
Working/storage temperature ℃ -40~85

Features
1. The plug-in optical beam splitter features a module concealed design with convenient wiring.
2. The device power is distributed in an even manner
3. The plug-in optical beam splitter is also known for its low polarization sensitivity.

Hengchang is a truthful optical fiber communication equipment and components manufacturer since 1994, besides the plug-in type optical beam splitter, we are offering optical fiber adapter, connector, patch cord for cable distribution purpose. We have extensive experience in making fiber optic components, always provide quality fiber optic splitter for global customers.
