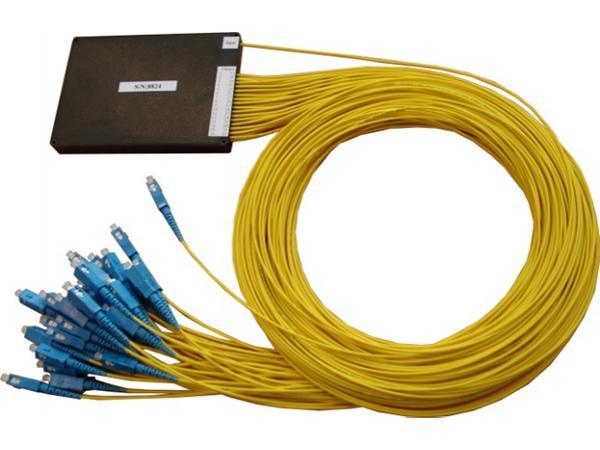

Box Type Fiber Optic Beam Splitter

Application
The box fiber optic beam splitter is another optic beam splitter used in corridor optical splitting boxes, as well as optical fiber distribution hubs. By increasing the number of box fiber optic beam splitters used, the ports are extended.

Parameters
Unit 1*2 1*4 1*8 1*16 1*32
Dimensions/ mm (Height*Width*Depth) 130*100*25 130*100*25 130*100*25 130*100*50 267*100*50
Working broadband nm 1260~1610
Insertion loss dB ≤3.8 ≤7.2 ≤10.5 ≤13.8 ≤17.1
Polarization dependent loss dB ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Homogeneity dB ≤0.5 ≤0.6 ≤0.8 ≤1.0 ≤1.5
Return loss dB ≥55
Directivity dB ≥55
Working/storage temperature ℃ -40~85

Features
1. The plug-in optical beam splitter features a module concealed design with convenient wiring.
2. The device power is distributed in an even manner
3. The plug-in optical beam splitter is also known for its low polarization sensitivity.

Hengchang is a truthful optical fiber communication equipment and components manufacturer since 1994, besides the plug-in type optical beam splitter, we are offering optical fiber adapter, connector, patch cord for cable distribution purpose. We have extensive experience in making fiber optic components, always provide quality fiber optic splitter for global customers.
