Application

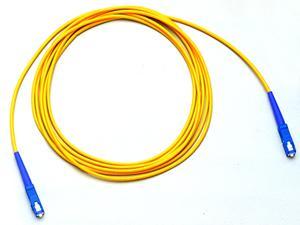

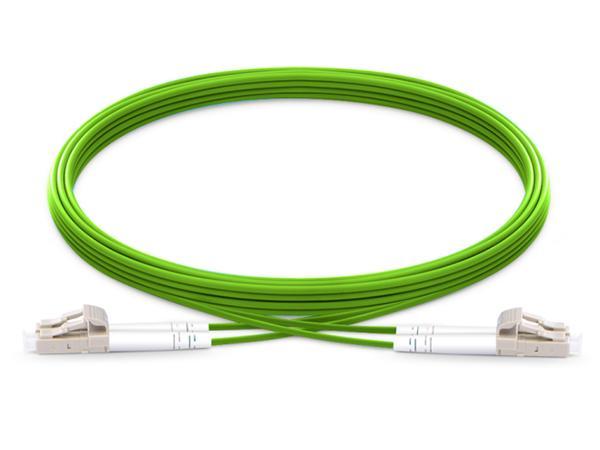

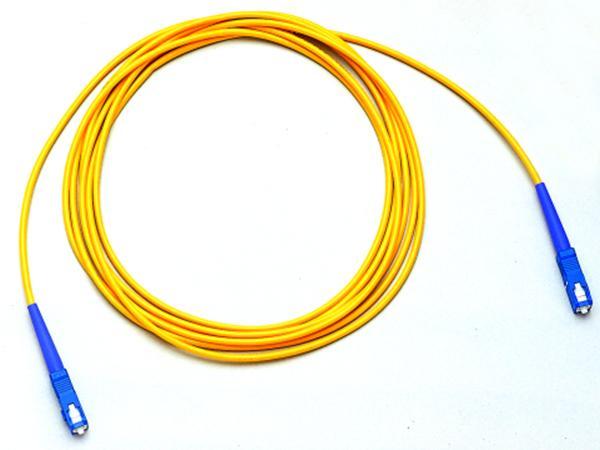

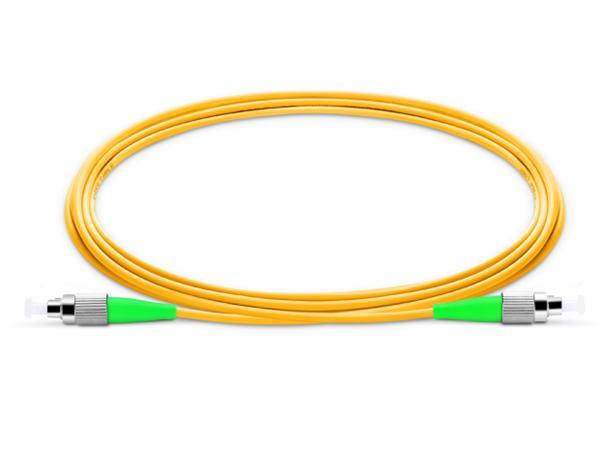

The optical fiber patch cord is an optical fiber with a plug in connector on both ends, and is most often used in optical path connections. The optical fiber patch cord is available with different connection types, including the FC, LC and SC, and is primarily used for device connections and wiring of indoor telecommunication networks, cable television networks and local area networks.
| Item | S M Single mode | M M Multimode | ||
| PC, UPC | APC | UPC | ||
| Optical feature | Insertion loss | ≤0.2dB | ≤0.3dB | ≤0.2dB |
| Return loss | ≥50dB | ≥60dB | ≥38dB | |
| Mechanic feature | Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | |||
| Durability | ＞1000 times | |||
| Environmental feature | High temperature | ≤0.2dB | ||
| Temperature circulation | ≤0.2dB | |||
| Low temperature | ≤0.2dB | |||
| Humidity | ≤0.2dB | |||
| Working temperature | -40℃～+80℃ | |||
Features

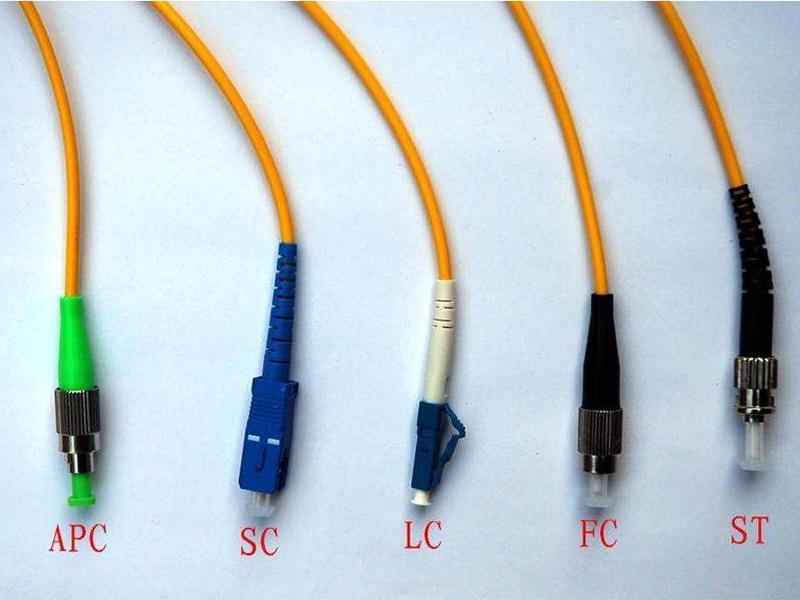

1. The optical fiber patch cord can be equipped with different plug types, including FC, SC, LC and ST based on different customer requirements.
2. The end face on the optical fiber patch cord plug is available as PC, UPC or APC.
3. To the optical fiber patch cord, the optical fiber mode includes a single mode or a multi-mode, with the single mode containing G652 and G655.
4. The optical fiber patch cord's structure is available as a single load, ribbon, bunchy or multi-load.
5. The length of the optical fiber patch cord can be determined as per customer requirements.
Hengchang is a truthful optical fiber communication equipment and components manufacturer since 1994, besides the optical fiber patch cord, we are offering optical fiber splitter adapter, connector for cable distribution purpose. We have extensive experience in making optical fiber components, always provide quality fiber optic patch cords and cables for global customers.
