Optical Fiber Pigtail

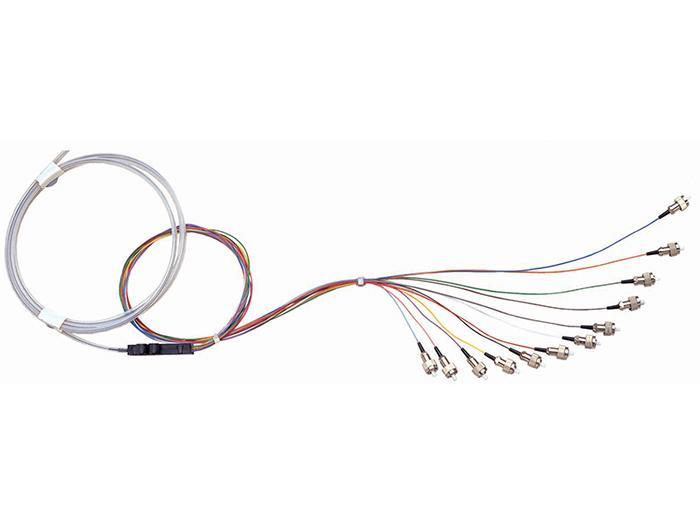

  • FC type 12 loads ribbon optical fiber pigtail

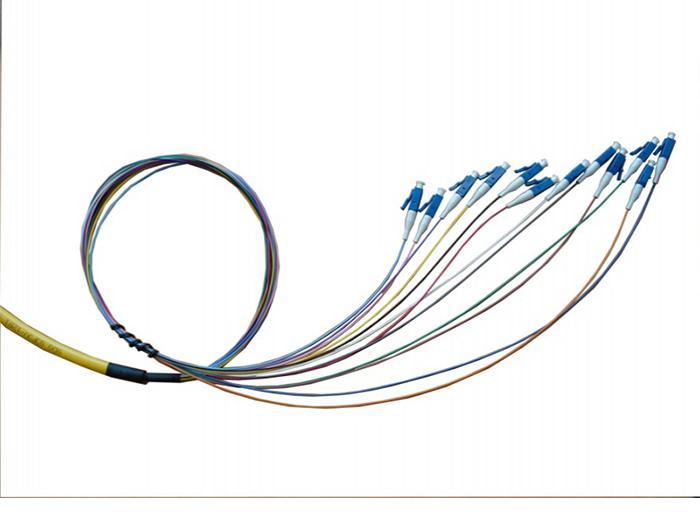

  • LC type 12 loads bunchy optical fiber pigtail

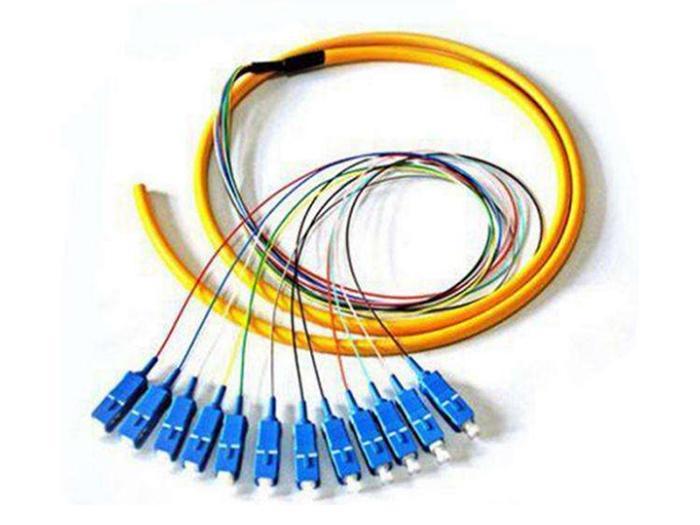

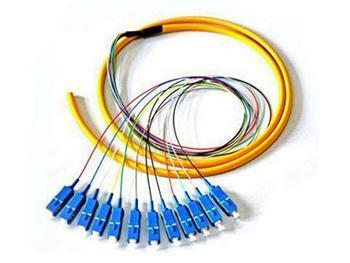

  • SC type 12 loads bunchy optical fiber pigtail

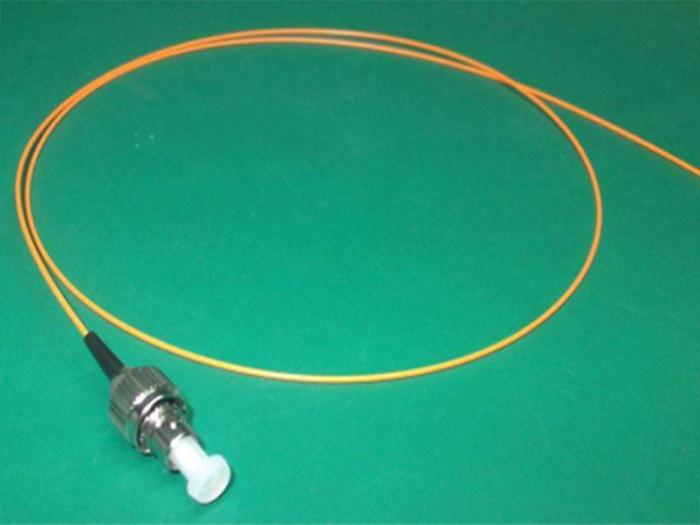

  • FC type single load optical fiber pigtail

Application
The optical fiber pigtail is a fiber with a connection plug on one end, and is often used for optical path connections. This fiber pigtail is primarily used for device connection and wiring of indoor telecommunication networks, cable television networks and location area networks. Connection styles include FC, LC and SC.

Parameters
Type S M Single mode M M Multimode
PC, UPC APC UPC
Optical feature Insertion loss ≤0.2dB ≤0.3dB ≤0.2dB
Return loss ≥50dB ≥60dB ≥38dB
Mechanic feature Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ＞1000 times
Environmental feature High temperature ≤0.2dB
Temperature circulation ≤0.2dB
Low temperature ≤0.2dB
Humidity ≤0.2dB
Working temperature -40℃～+80℃

Primary features

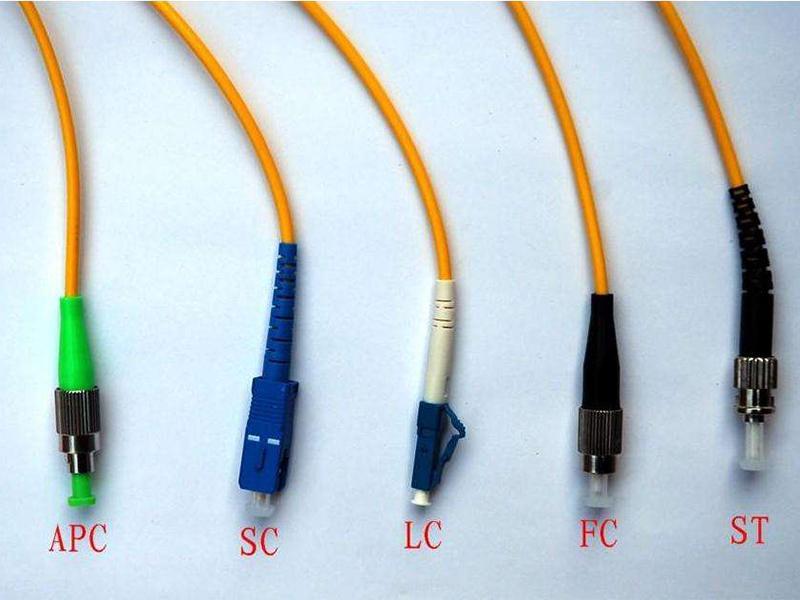

1. The optical fiber pigtail can be equipped with different plugs, including FC, SC, LC and ST.
2. The end face of the optical fiber pigtail plug is available as PC, UPC or APC.
3. To the optical fiber pigtail, optical fiber modes include single or multi-modes, with the single mode containing G652 and G655.
4. This optical fiber pigtail structure includes single load, ribbon, bunchy or multi-load.
5. The length of the optical fiber pigtail is determined based on customer requirements.

Hengchang is a specialized fiber optic communication equipment and components manufacturer since 1994, besides the optical fiber pigtail, we are offering optical fiber adapters, connectors, patch cords for cable distribution purpose. We have extensive experience in making fiber optic components, always provide quality fiber optic pigtails for global customers.
