Application

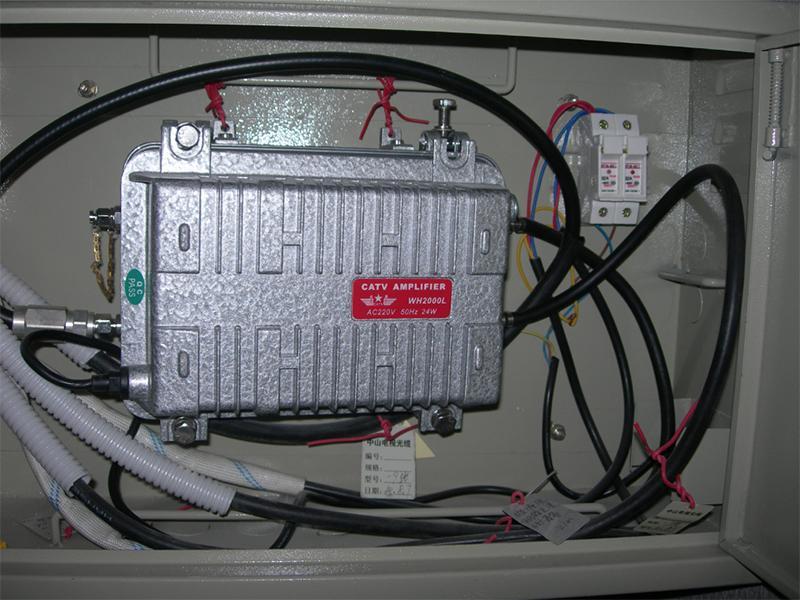

The radio and TV signal amplifier enclosure is used to amplify a signal in broadcast and television networks. With its protection against water, sand and theft, this signal amplifier box comes with an adjustable stand, allowing it to be installed in a flexible manner. With its concealed installation style, it saves space, and users can request that it be equipped with an air switch, outlet and intellectual monitor lock.
Materials
The radio and TV signal amplifier enclosure is made of either a stainless steel plate or a galvanized steel sheet with numerical control and an electrostatic plastic spray surface. The spray color is greyish white, though it can be customized according to customer requirements. The surface is smooth and sleek, and corrosion resistant.
| Type | | | | | |||||||
| Dimensions (Height*Width*Depth | 500*500*250 | 500*500*250 | 500*500*200 | 500*500*200 | 350*550*180 | 350*550*180 | 450*550*210 | 450*550*210 | 400*400*150 | 400*400*150 | |
| Material | 1.0mm Stainless steel plate | 1.0mm Galvanized steel sheet | 1.0mm Stainless steel plate | 1.0mm Galvanized steel sheet | 1.0mm Stainless steel plate with plastic spraying | 1.0mm Galvanized steel sheet | 1.0mm Stainless steel plate | 1.0mm Galvanized steel sheet | 1.0mm Stainless steel plate | 1.0mm Galvanized steel sheet | |
| Primary device space | The amplifier or optical equipment can be installed. | The amplifier can be installed. | |||||||||
| Temperature control type | An air fan is an optional piece of equipment for installation | None | |||||||||
| Intelligent monitor | An intellectual monitor is an optional piece of equipment | ||||||||||
| Install style | Wall mounting, hanging on the pole and concealed. | ||||||||||
Features

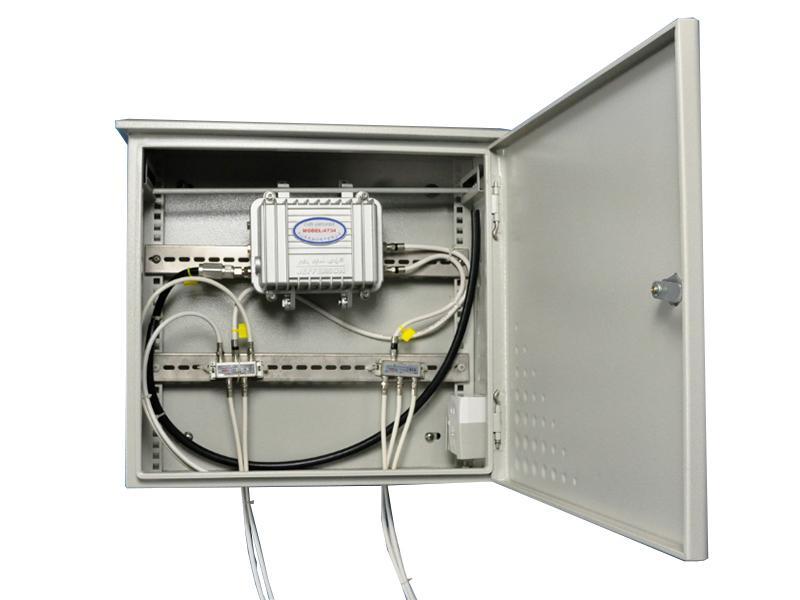

1. The radio and TV signal amplifier enclosure is equipped with both upper and lower shift adjustment boards.
2. The installation of additional equipment and the distributing UPS power can both be done in the radio and TV signal amplifier enclosure.
3. The primary space of the radio and TV signal amplifier enclosure is enough for an amplifier or small optic machine.
4. Users can request the installation of an air fan or intellectual monitor system.
Hengchang is a specialized fiber optic broadcast communication equipment manufacturer since 1994, besides the radio and TV signal amplifier enclosure, we are offering optical distribution frame, fiber distribution box, as well as FTTX distribution products. We have extensive experience in making data communication and network equipment, always provide quality broadcast enclosures for global customers.
