Application of the broadcast monitoring enclosure
The broadcast monitoring enclosure is often called a supervisory box, and is designed to monitor the information transmission and power supply equipment in broadcast television networks, public security traffic networks and communication networks. This enclosure is water and sand resistant, as well as theft resistant. It is also equipped with an adjustable stand and an equipment installation board shelf. The enclosure is large enough for users to also optionally install an intellectual monitor lock and alarm system, thus allowing the monitoring enclosure to be used in any number of environments.
Materials
The broadcast monitoring enclosure is made of either a stainless steel plate or a galvanized steel sheet with numerical control and an electrostatic plastic spray surface. The spray color is greyish white, though it can be customized according to customer requirements. The surface is smooth and sleek, and corrosion resistant.
| Type | | | | | | | | | | | |
| Dimensions (height*width*depth | 1200*600*600 | 1200*600*600 | 600*400*300 | 600*400*300 | 480*350*150 | 480*350*150 | 500*450*250 | 500*450*250 | 480*450*180 | 480*450*180 | |
| Material | 1.2mm Stainless steel plate | 1.2mm Galvanized steel sheet | 1.2mm Stainless steel plate | 1.2mm Galvanized steel sheet | 1.0mm Stainless steel plate | 1.0mm Galvanized steel sheet | 1.0mm Stainless steel plate | 1.0mm Galvanized steel sheet | 1.2mm Stainless steel plate | 1.2mm Galvanized steel sheet | |
| Primary device space | The enclosure features enough space for the installation of an optic machine, amplifier, power supplies, branch distributor, optical beam splitter and ONU. | ||||||||||
| Temperature control type | An air fan is an optional piece of equipment for installation | ||||||||||
| Intelligent monitor | An intellectual monitor is an optional piece of equipment | ||||||||||

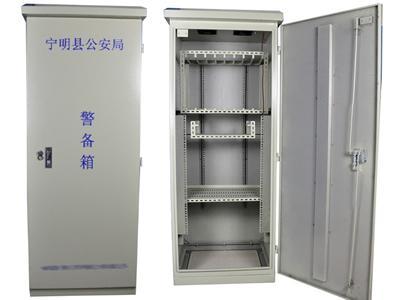

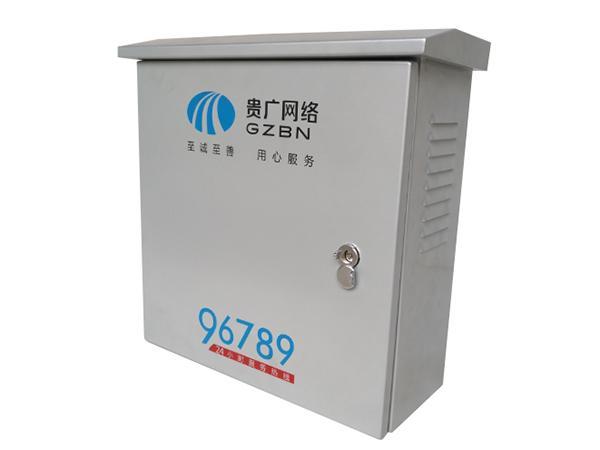

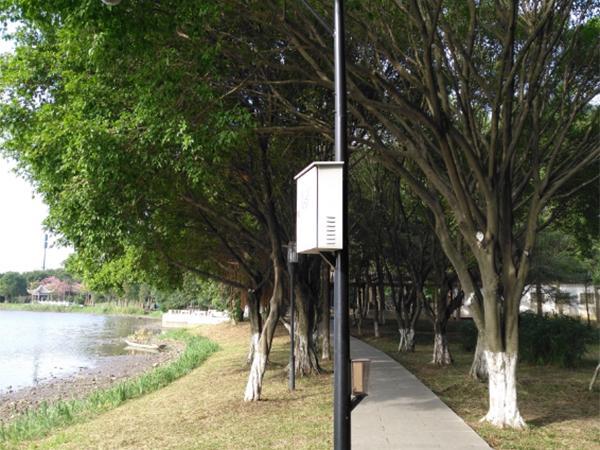

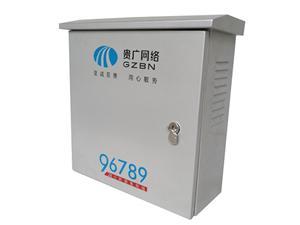

| Install style | Ground type | Wall mounting ,hanging on the pole | |||||||||
Features

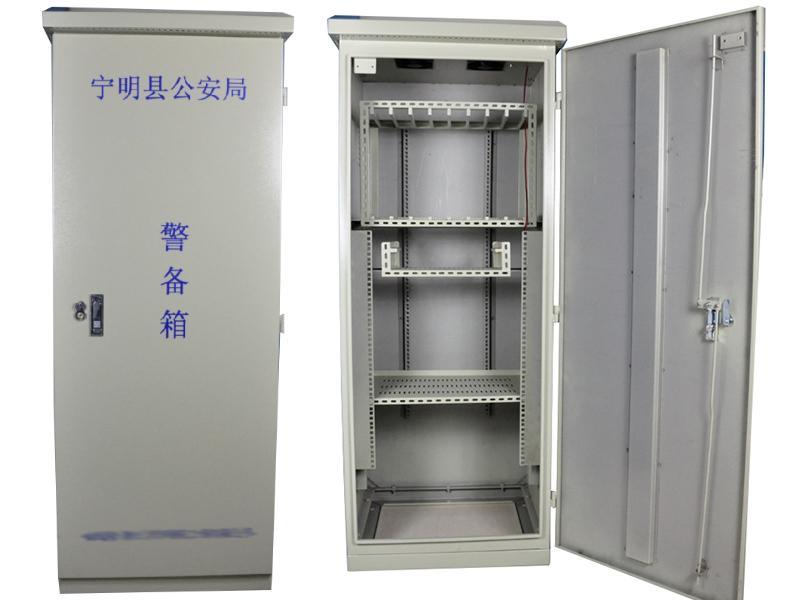

1. The broadcast monitoring enclosure is equipped with both upper and lower shift adjustment boards.

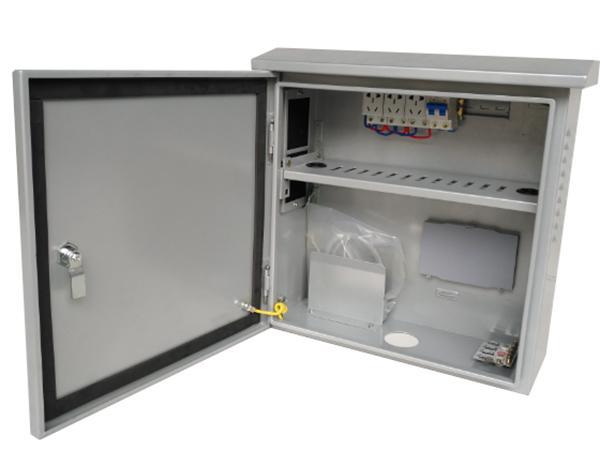

2. The installation of additional equipment and the distributing UPS power can both be done in the enclosure.
3. The internal port is installed in a strip shaped manner, pointing out towards the user.
4. The primary space of the broadcast monitoring enclosure is enough for an amplifier or small optic machine.
5. Users can request the installation of an air fan or intellectual monitoring system.
Hengchang is a truthful optical fiber broadcast communication equipment manufacturer since 1994, besides the broadcast monitoring enclosure, we are offering cable distribution frame, distribution cabinet, as well as FTTX distribution box. We have extensive experience in making data communication equipment, always provide quality broadcast enclosure for global customers.
