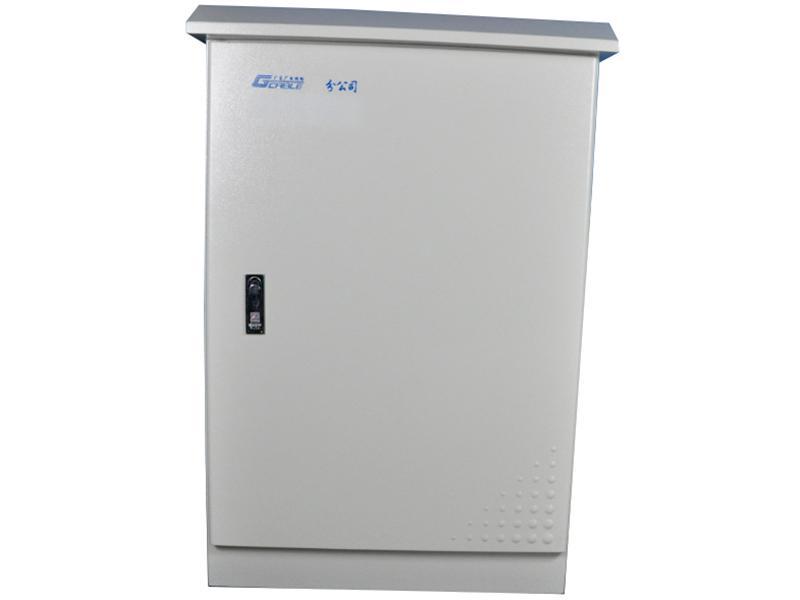

Application of the broadcast TV signal receiver enclosure
The broadcast TV signal receiver enclosure is used to install the signal receiver and power supplies in broadcast and television network. With its resistance to water and sand, as well as theft prevention, the signal receiver can be equipped with a fan for additional heat dissipation, and with an adjustable stand, the installation process is flexible. With its concealed installation style, the TV signal receiver enclosure saves installation space.
Materials of the broadcast TV signal receiver enclosure
The broadcast TV signal receiver enclosure is made using a stainless steel plate or galvanized steel sheet with an electrostatic plastic spray surface. The standard color of this spray is a greyish white, though it can be customized according to customer requirements. With a clean, smooth and corrosion resistant surface, it is suitable for both indoor and outdoor use.
| Type | | | | | | ||||||
| Dimensions (Height*Width*Depth) | 1250*800*450 | 1250*800*450 | 800*800*350 | 800*800*350 | 850*750*350 | 850*750*350 | 800*600*300 | 800*600*300 | 650*450*330 | 650*450*330 | |
| Material | 1.2mm Stainless steel plate | 1.2mm Galvanized steel sheet | 1.2mm Stainless steel plate | 1.2mm Galvanized steel sheet | 1.2mm Stainless steel plate | 1.2mm Galvanized steel sheet | 1.2mm Stainless steel plate | 1.2mm Galvanized steel sheet | 1.2mm Stainless steel plate | 1.2mm Galvanized steel sheet | |
| Temperature control type | The air fan is an optional installation. | ||||||||||
| Intelligent monitoring | The equipment is an optional installation. | ||||||||||
| Install style | Ground type | Wall mounting ,hanging on the pole | |||||||||

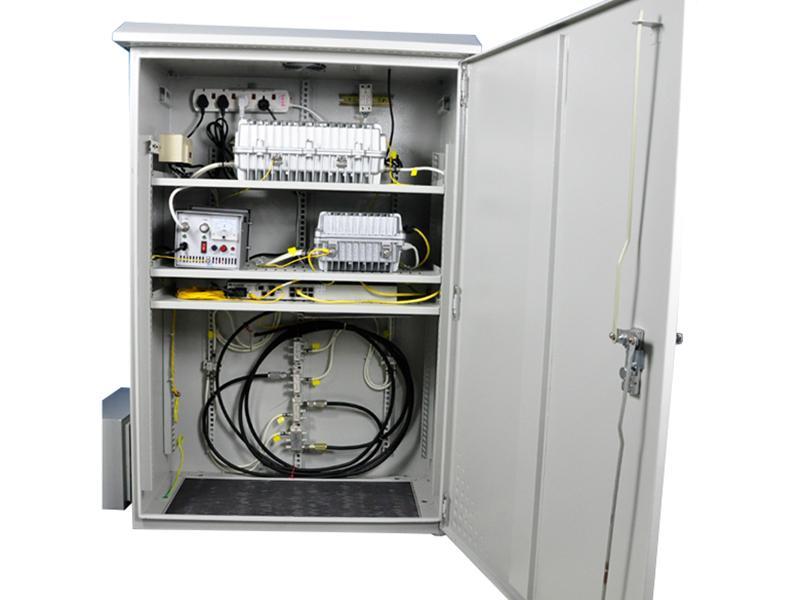

| Primary device space | The broadcast TV signal receiver enclosure is designed to be housing for the installation of optic machines, amplifiers, power supplies, branch distributors, and optical beam splitters. It also saves 4U equipment space. | ||||||||||
Features
1. The broadcast TV signal receiver enclosure can be equipped with an intellectual monitor lock as well as an adjustable stand.
2. The device can equip both upper and lower shift adjustment boards.
3. The installation of the device requires only 19 inches of space and a distribution of UPS power within the broadcast TV signal receiver enclosure.
4. An air fan and intellectual monitor system are also optional components.
Hengchang is a specialized fiber optic broadcast communication equipment manufacturer since 1994, besides the broadcast TV signal receiver enclosure, we are offering cable distribution frame, server rack, fiber distribution box, as well as FTTX distribution solutions. We have extensive experience in making optical fiber communication equipment, always provide quality broadcast enclosures for global customers.
