Application of the PLC splitter FTTB optical fiber distribution box

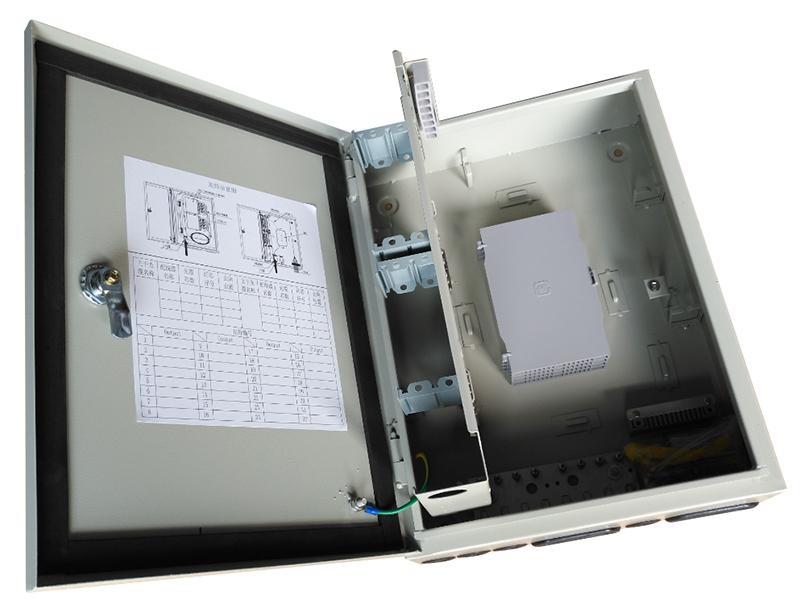

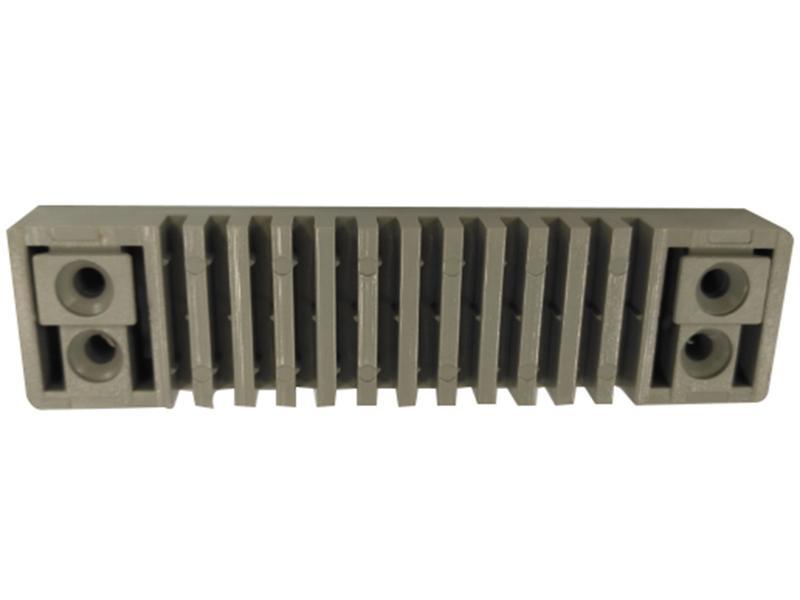

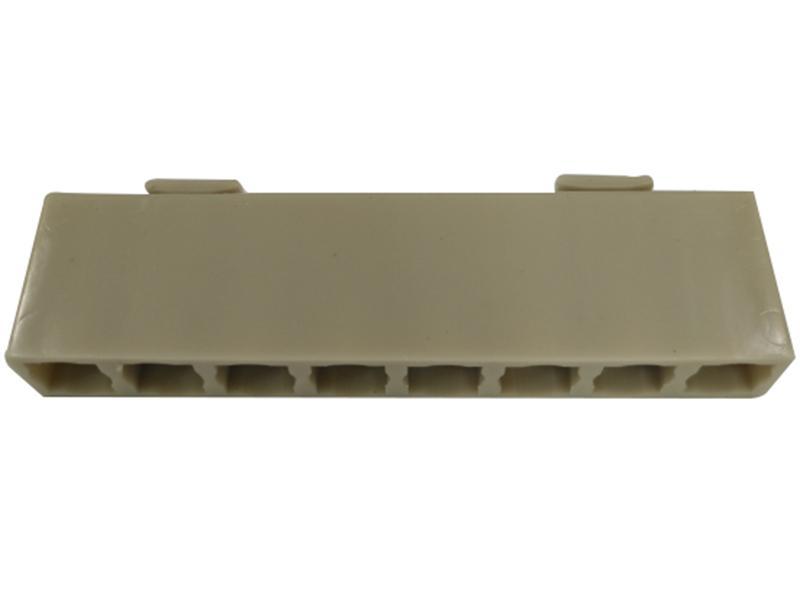

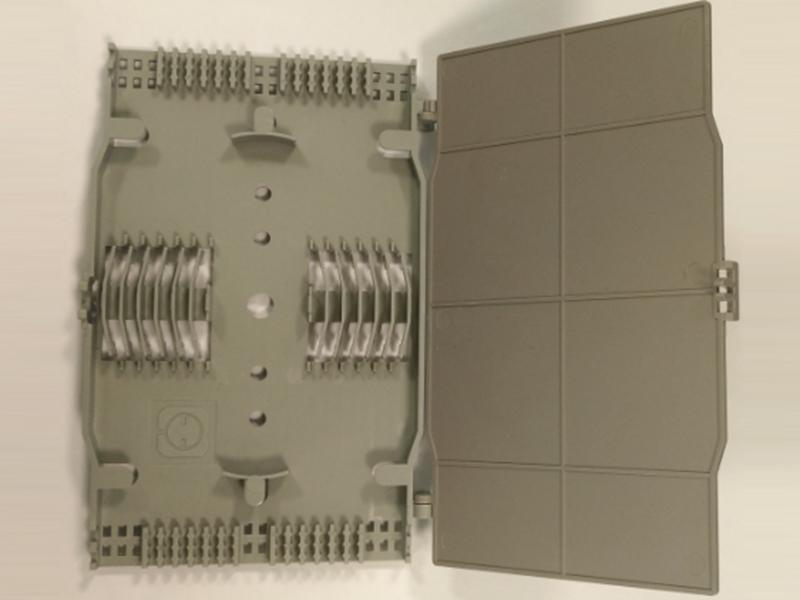

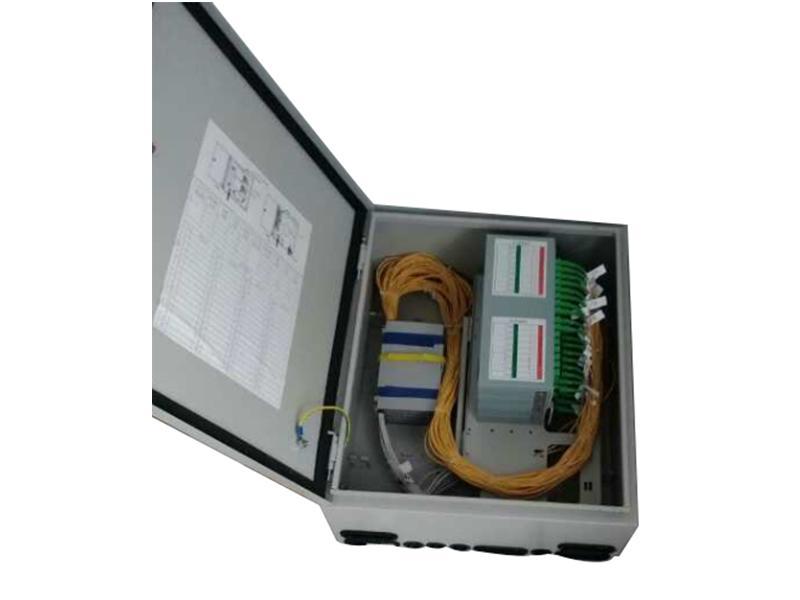

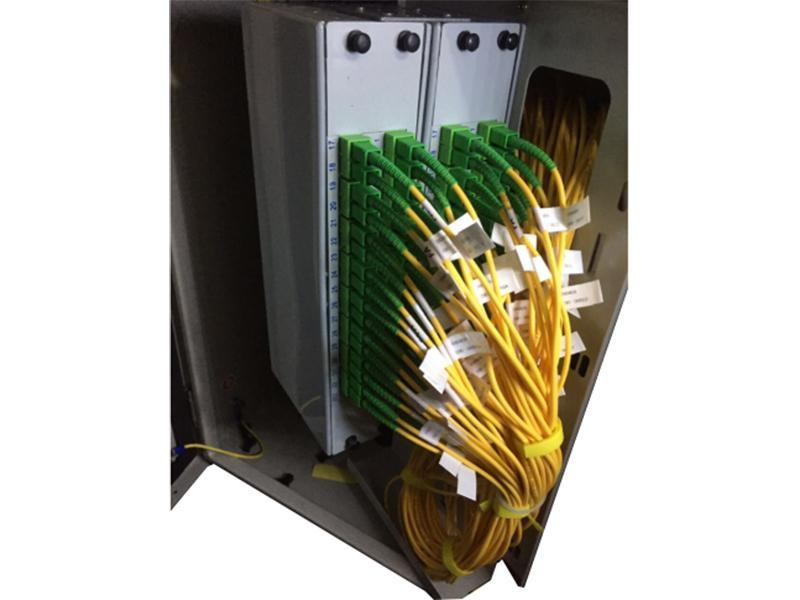

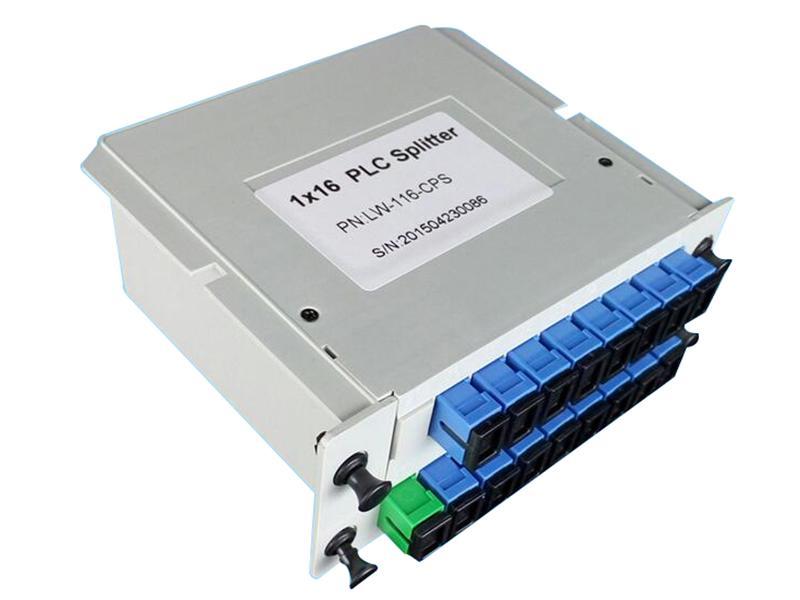

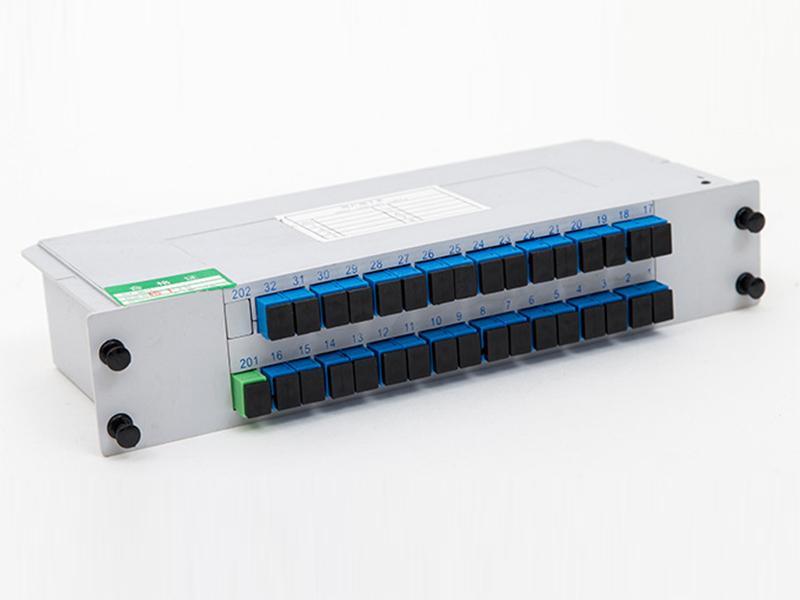

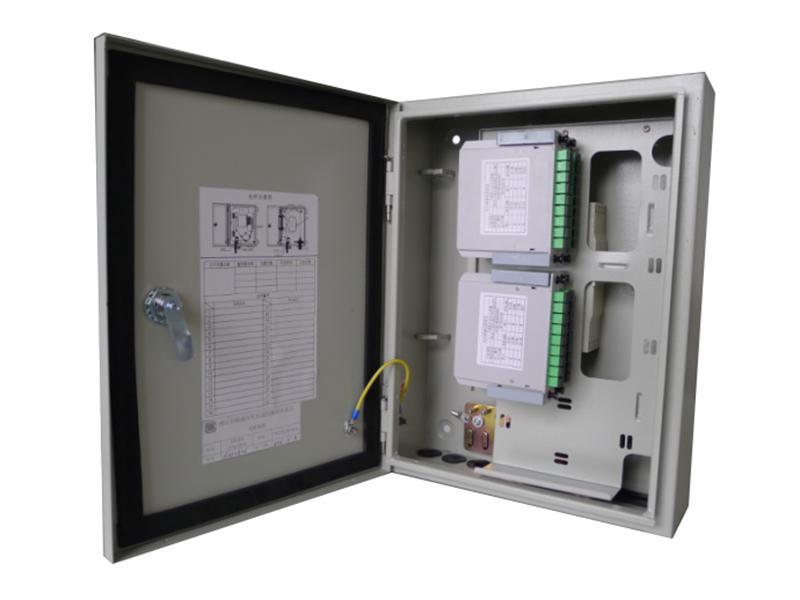

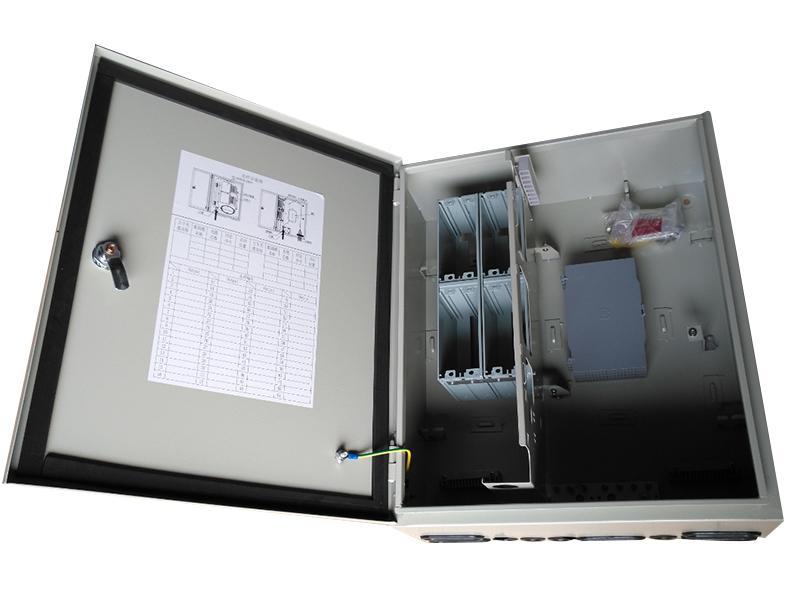

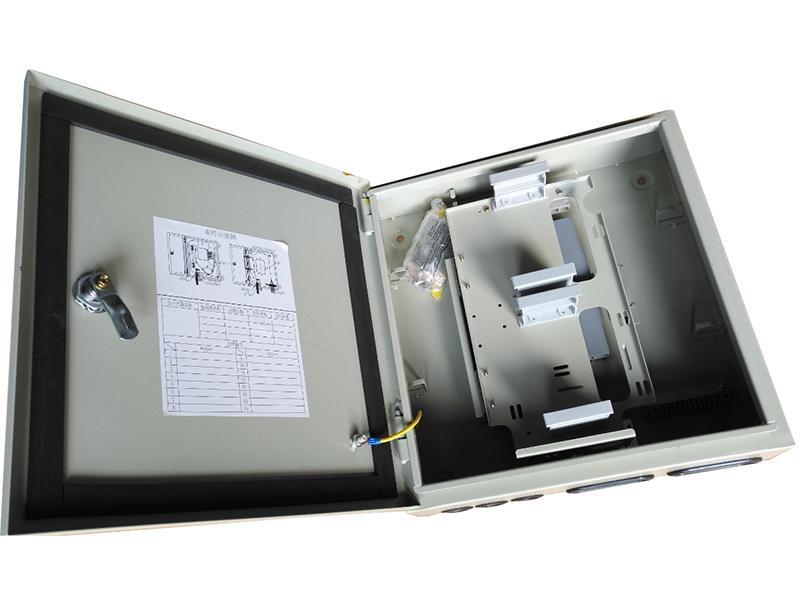

The PLC splitter FTTB optical fiber distribution box is an important piece of equipment used in fiber access systems on ODN networks. The distribution box can be used in outdoor and indoor installations for the connection, distribution, and dispatch between outdoor optical fiber cable and optical fiber terminal devices. The standard equipment of the PLC splitter FTTB optical fiber distribution box includes plug in type optical beam splitter and fiber adapter plates. The card slot sites of the optical fiber distribution box can be assembled freely and satisfy the mixed insertion of the plug in type optical beam splitter line ones that split from one to eight, sixteen, and thirty two. The box has all kinds of optical fiber splitting options to satisfy the needs of the fiber network.
Materials of the PLC splitter FTTB optical fiber distribution box
PLC splitter FTTB optical fiber distribution box features galvanized steel sheet with a thickness no less than 1.0mm and the surface of the steel sheet uses an electrostatic spraying plastic. The distribution box is suitable for indoor and outdoor use. The spray provides corrosion protection. The color is gray and white and can also be customized.
| Type | Dimensions /mm (height*width*depth) | Capacity (load) | Standard configuration | Optional configuration |
| 350*340*100 | 16 | 24 loads Fiber optic splice tray; 4 fiber adapter plates | two plug-in type optical beam splitters(one splitting eight) | |
| 420*320*120 | 32 | 48 loads Fiber optic splice tray; 8 fiber adapter plates | two plug-in type optical beam splitters (one splitting sixteen) or four plug-in type optical beam splitters (one splitting eight) | |
| 500*420*190 | 64 | 72 loads Fiber optic splice tray ; 8 fiber adapter plates | two plug-in type optical beam splitters (one splitting thirty two) or eight plug-in type optical beam splitters (one splitting eight) |
Technical feature of the PLC splitter FTTB optical fiber distribution box
1. Environmental conditions
Environmental temperature: -25℃~+40℃;
Relative humidity：≤85% (When the temperature is 30 centigrade)
Atmospheric pressure：70KPa~106KPa;
2. Photoelectric property
Connector attenuation (including insert, exchange and repeat)≤0.3dB
Return Loss：APC type≥60dB, UPC type≥ 50dB , PC type≥40dB
3. High pressure protection ground device
Insulation resistance:≥2*104MΩ/500V (direct voltage)
Withstand voltage:≥3000V (direct voltage) per minute, the PLC splitter FTTB optical fiber distribution box is without the breakdown voltage and without the phenomenon of arc-over.
4. Main mechanical property parameters
Connector insert and extract durability ＞ 1000 times
Radius of curvature of the optical fiber is more than 30mm;
Features of the PLC splitter FTTB optical fiber distribution box
1. Application area: Outdoor, corridor or indoor;
2. Installation style: Wall mounting or hanging on the pole in the outdoor;
3. The PLC splitter FTTB optical fiber distribution box has the optical fiber cable fixation, stripping protection and ground devices.
4. The PLC splitter FTTB optical fiber distribution box can implement the optical fiber cable function of direct connection, divergent, disc storage and splice;
5. The opening angel of the optical fiber distribution box door is no less than 120 degree;
6. The PLC splitter FTTB optical fiber distribution box door equips burglarproof padlock, thus the device cannot be stolen easily.
7. The optical fiber distribution box is good sealed and is effectively able to prevent the box from dust, insects and mice.
8. Optical beam splitter adapts the plug-in type design style of one splitting into eight making the assembly easy.
Hengchang is a specialized fiber optic communication equipment manufacturer since 1994, besides the PLC splitter FTTB optical fiber distribution box, we are offering FTTX distribution products and solutions like for FTTC fiber to the cabinet, FTTP optical fiber laid to the premises, FTTH fiber to the home, etc. We have extensive experience in making data communication equipment, always provide quality FTTB distribution box for global customers.
