Indoor FTTB Optical Fiber Distribution Box

Application of the indoor FTTB optical fiber distribution box
The indoor FTTB optical fiber distribution box is designed as a small capacity optical fiber cable wiring device. It is intended for use when the FTTH indoor optical fiber cable is accessed and distributed in the network. The fiber box performs optical fiber cable splicing, wiring, and splitting. The box type fiber optic beam splitter splits the beam and wires the fiber effectively.

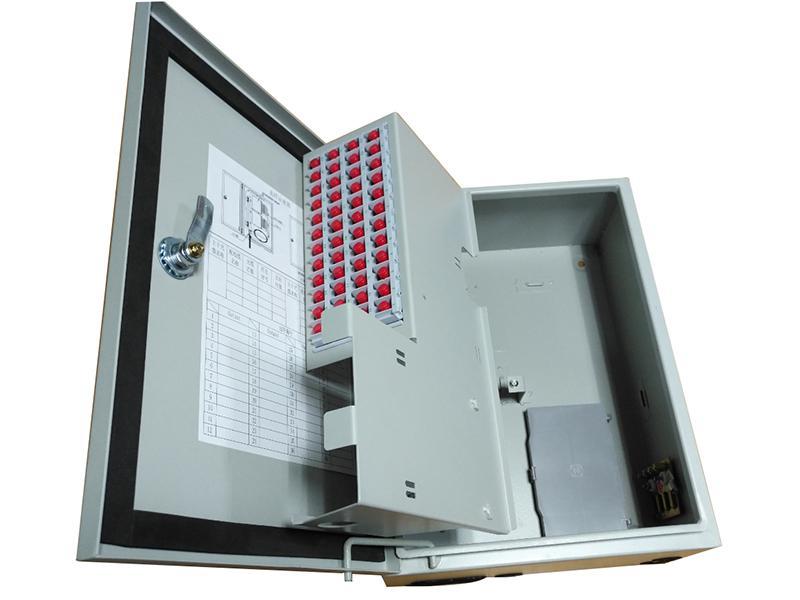

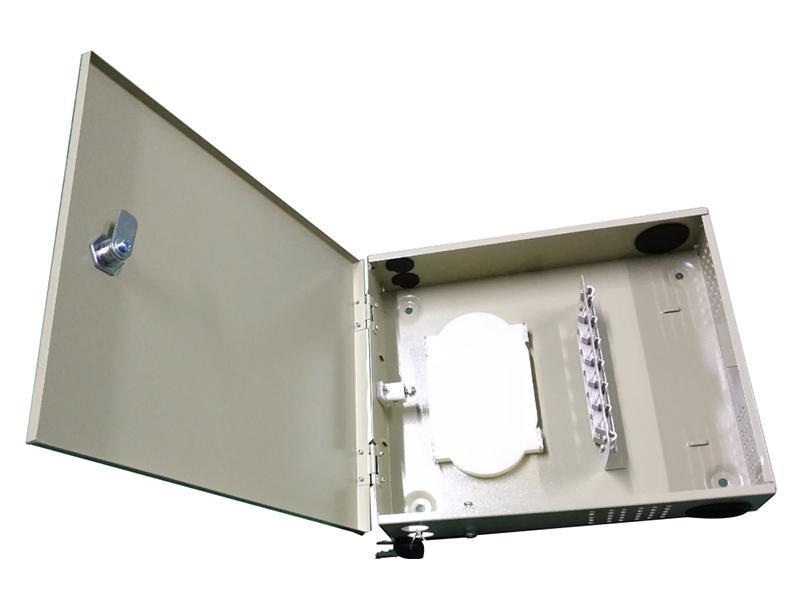

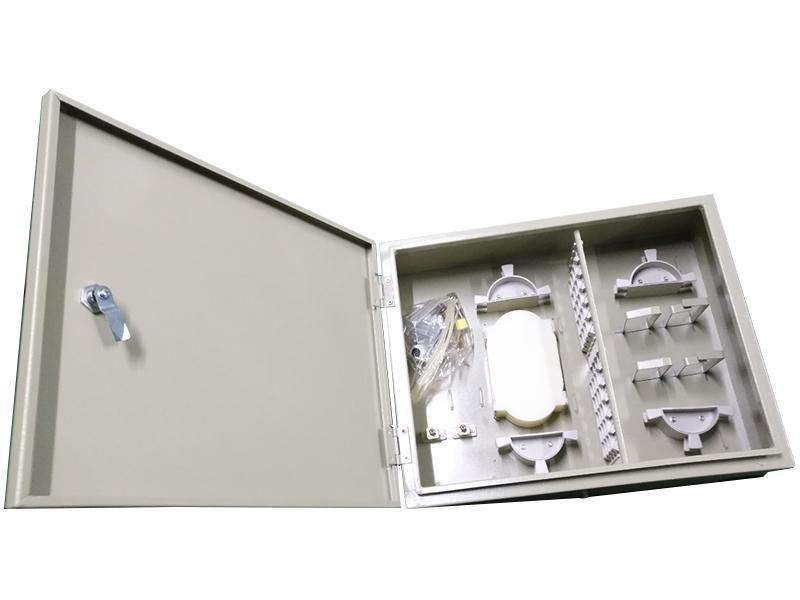

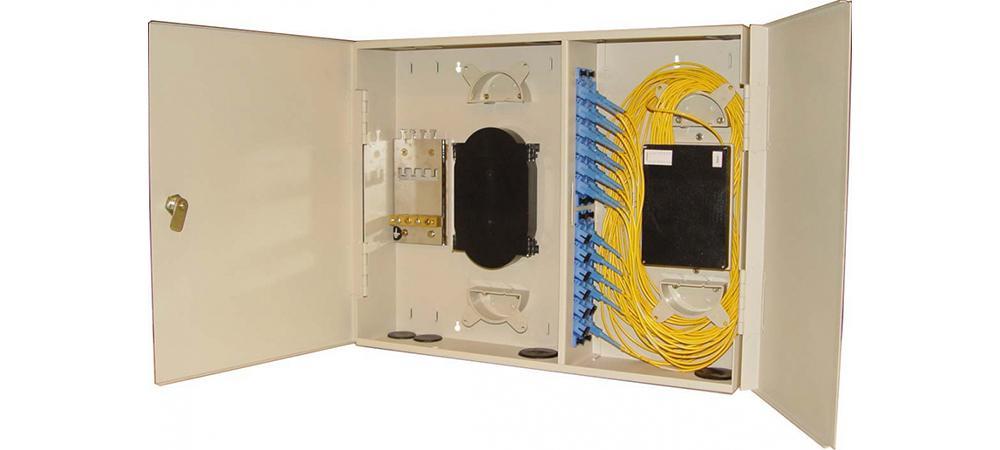

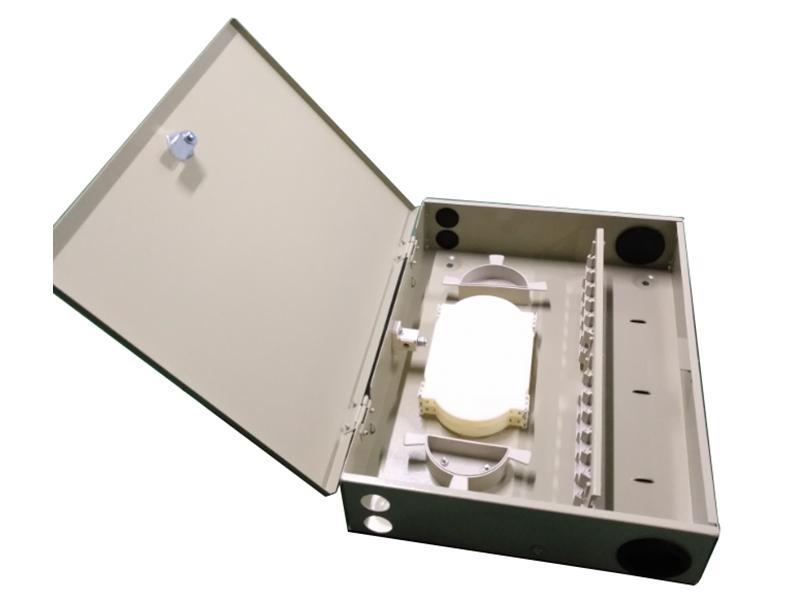

  • 24 loads indoor FTTB optical fiber distribution box
  • 36 loads indoor FTTB optical fiber distribution box
  • 48 loads indoor FTTB optical fiber distribution box
  • 72 loads indoor FTTB optical fiber distribution box

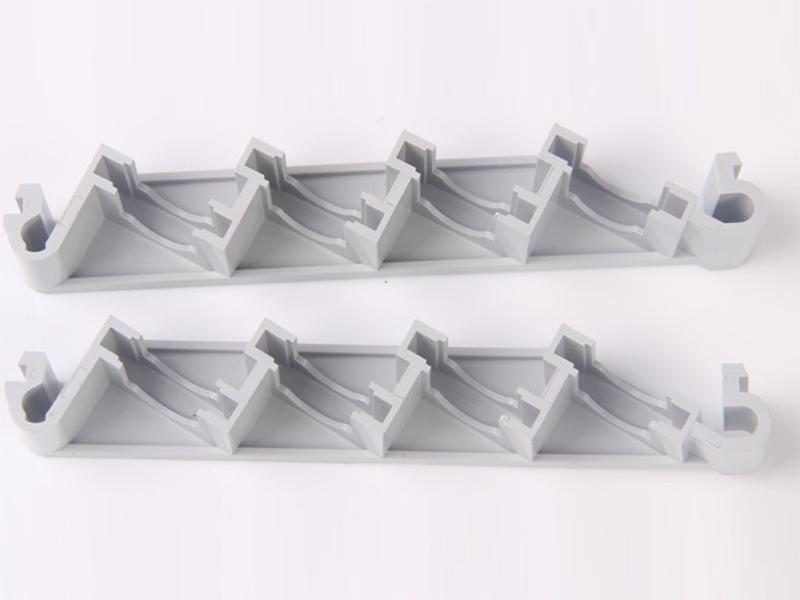

  • Adapter (with 4 sockets)

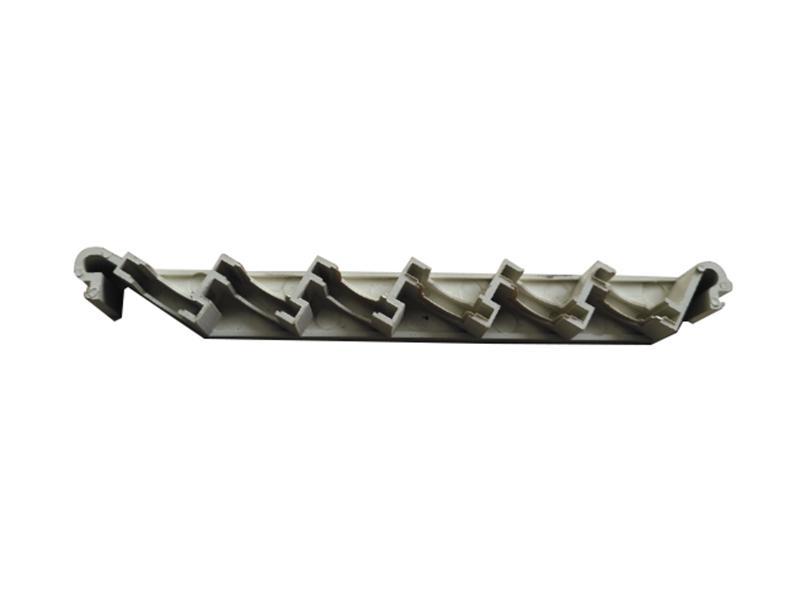

  • Adapter (with 6 sockets)

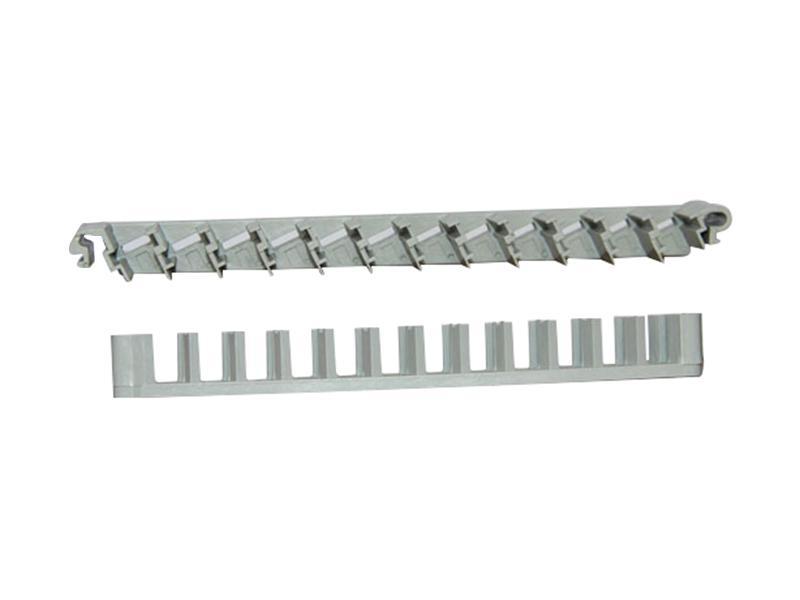

  • Adapter (with 12 sockets)

Materials of the indoor FTTB optical fiber distribution box
Indoor FTTB optical fiber distribution box features galvanized steel sheet with a thickness no less than 1.0mm and the surface of the steel sheet uses an electrostatic spraying plastic. The distribution box is suitable for indoor and outdoor use. The spray provides corrosion protection. The color is gray and white and can also be customized.

Size
Type Dimensions/mm (height×width×depth) Capacity( load)
GPX14Ⅲ-12 280×350×100 12
GPX14Ⅲ-24 350×340×100 24
GPX14Ⅲ-36 420×320×120 36
GPX14Ⅲ-48 420×320×170 48
GPX14Ⅲ-72 500×420×190 72

Feature of the indoor FTTB optical fiber distribution box
1. Application area: Outdoor, corridor or indoor;
2. Installation style: Wall mounting or hanging on the pole;
3. To the indoor FTTB optical fiber distribution box, FC and SC panel can be installed, and the maximum capacity can be the 96 loads;
4. The splice zone and wring zone are designed separately, and can be regulated not so complicatedly.
5. The wring box can install the optical beam splitter.
6. To indoor FTTB optical fiber distribution box, the adapter and pigtail of UPC or APC end face are available.
7. There are optical fiber cable fixation ground device with the indoor FTTB optical fiber distribution box.
8. In order to maintain the device, the splice tray can be rollover.
9. The indoor FTTB optical fiber distribution box has enough space for the entry of optical fiber.

Hengchang is a well-qualified optical fiber communication equipment manufacturer since 1994, besides the indoor FTTB optical fiber distribution box, we are offering FTTX distribution products and solutions like for FTTH fiber to the home, FTTC fiber to the cabinet, FTTP optical fiber laid to the premises, etc. We have extensive experience in making data communication and networking equipment, always provide quality FTTB distribution box for global customers.
