HC-M106B DDF Digital Distribution Frame

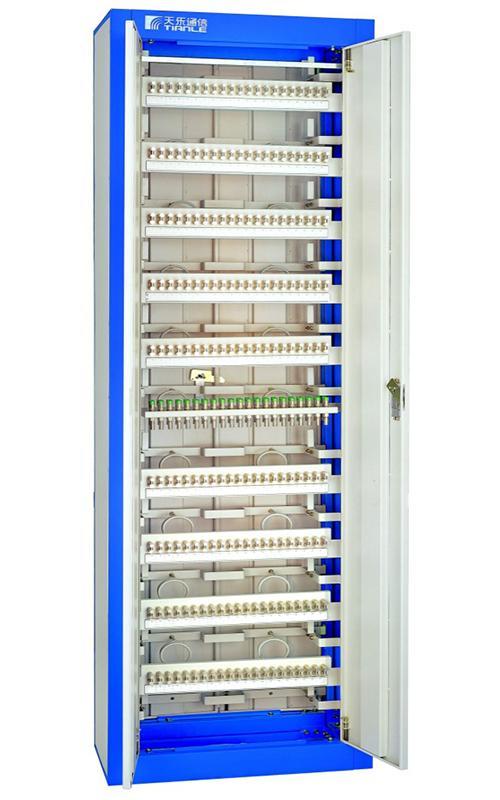

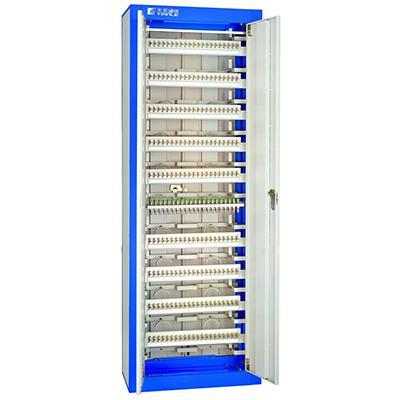

  • Close cabinet

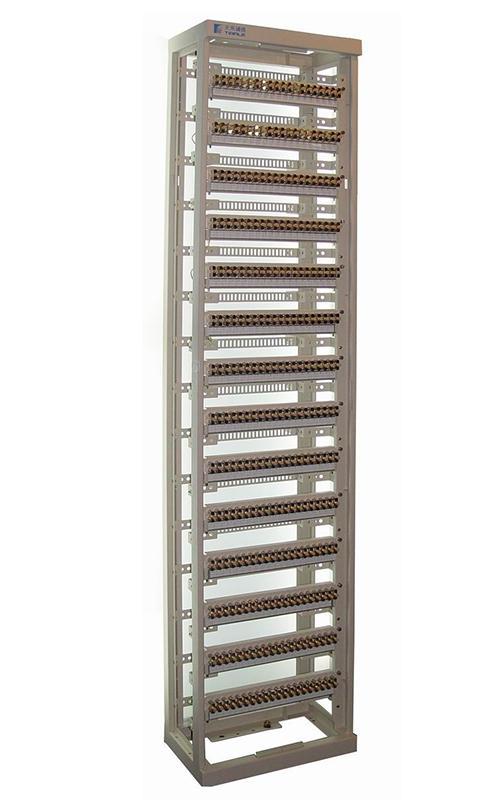

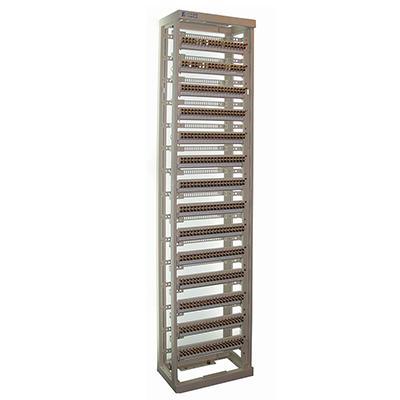

  • Open cabinet

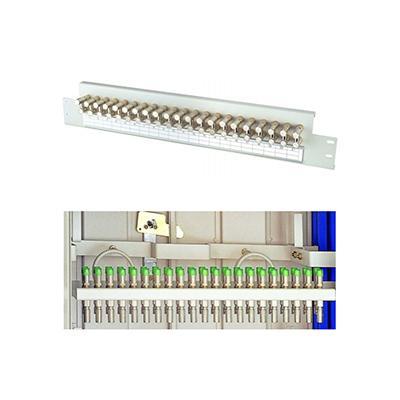

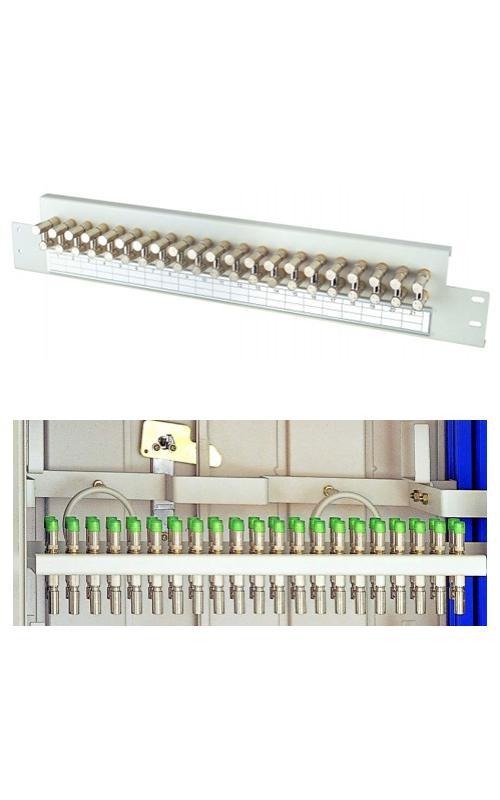

  • Module unit

Application
The HC-M106B DDF digital distribution frame is designed for use in machine rooms as a distribution device that operates between digital multiplex equipment or between digital multiplex equipment and program controlled exchange devices. The transmission impedance of the distribution frame is 75Ω, and the transmission rate is between 2Mbit/s~155Mbit/s. These units provide dispatching, transferring, monitoring, and many other functions for the digital signal of the circuit group.

Technical performance
1. Working speed: 2~155Mbit/s
2. Transmission impedance: 75Ω
3. Crosstalk ratio between circuits: ≥70db(50khz～233mhz)
4. Insertion loss: ≤0.3db(50khz～233mhz)
5. Return loss: ≥18db(50khz～233mhz)
6. Contact resistance of the coaxial connector:
Outer conductor: ≤2.5mΩ
Increment after the mechanical endurance test: ≤2.5mΩ
Inter conductor: ≤10mΩ
Increment after the mechanical endurance test: ≤10mΩ
7. Insulation resistance: ≥1000MΩ (500VDC)
8. Pull-out force: ≥50N

Technical specification
Model Outline size (height × width × depth) Equipped module unit number Capacity (system) Remarks
HC-M106B(140-26) 2600×480×300 14 140 Open-type
HC-M106B(120-22) 2200×480×300 12 120
HC-M106B(96-20) 2000×480×300 11 110
HC-M106B1(140-26) 2600×480×300 14 140 Close-type
HC-M106B1(120-22) 2200×480×300 12 120
HC-M106B1(96-20) 2000×480×300 11 110

Features
1. The aluminum alloy frame surface is treated with an electrostatic spray.
2. Inside the digital distribution frame has spacious wiring space, so that the cabling lines are clear and easy to reach.
3. Module unit can be rotated 90 degrees.
4. The coaxial connector uses beryllium bronze or tin phosphor bronze, the thickness of the contact surface gold plating layer is greater than 2μm.
5. The distribution frame adopts modular construction for convenient installation and maintenance. The door and side board can be installed to form a sealed distribution box.
6. With a test port, it can be tested online, convenient and flexible for monitoring and maintenance.
7. Compatible with SIEMENS equipment.

Hengchang is a reliable fiber optic networking equipment manufacturer since 1994, besides the DDF digital distribution frame, we are offering products like server rack and cabinet, power distribution frame, structured cabling system, etc. We have extensive experience in making network equipment, always provide quality digital distribution frame for global customers.
