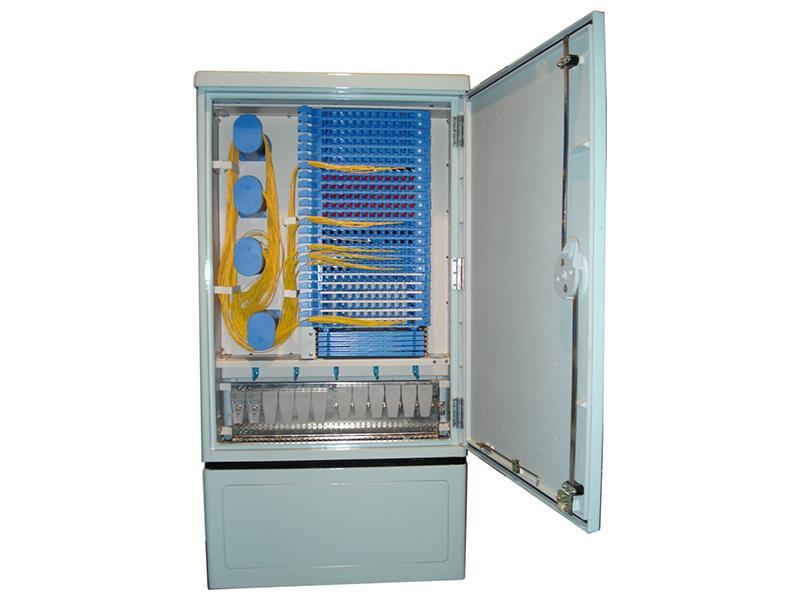

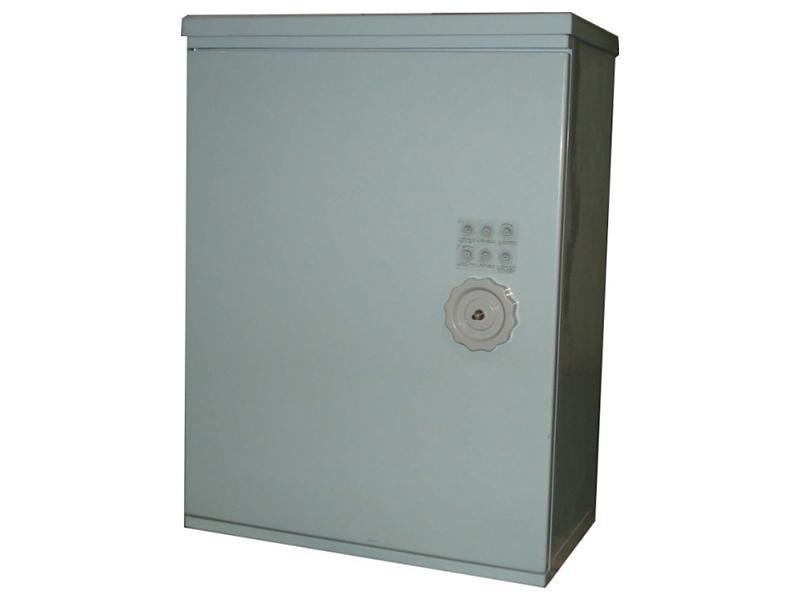

Application of the optical fiber distribution hub

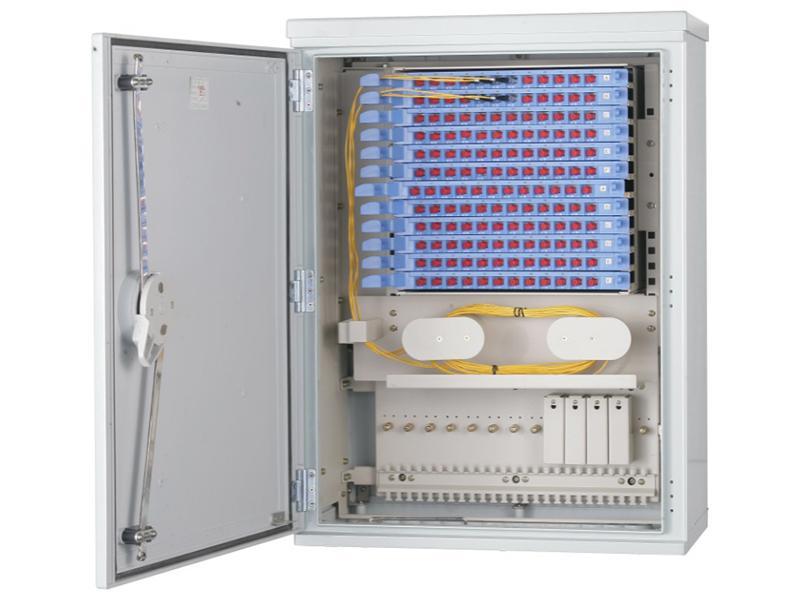

The optical fiber distribution hub is network interfacing equipment connected to optical fiber cable trunks with wiring optical fiber cable. Using the optical fiber distribution hub, the optical fiber cable trunk and wiring optical fiber cable can be fixed, stripped, protected, and connected with simplicity. With the optical fiber patch cord, the hub quickly adjusts optical fiber sequence numbers and changes the transmission routing system. When the PON is accessed, the optical fiber distribution hub can be used to install the optical fiber branching device, creating an interconnection. The device is ideal when paired with PON accesses outdoors for high capacity optical fiber cable wiring systems.
Materials of the optical fiber distribution hub

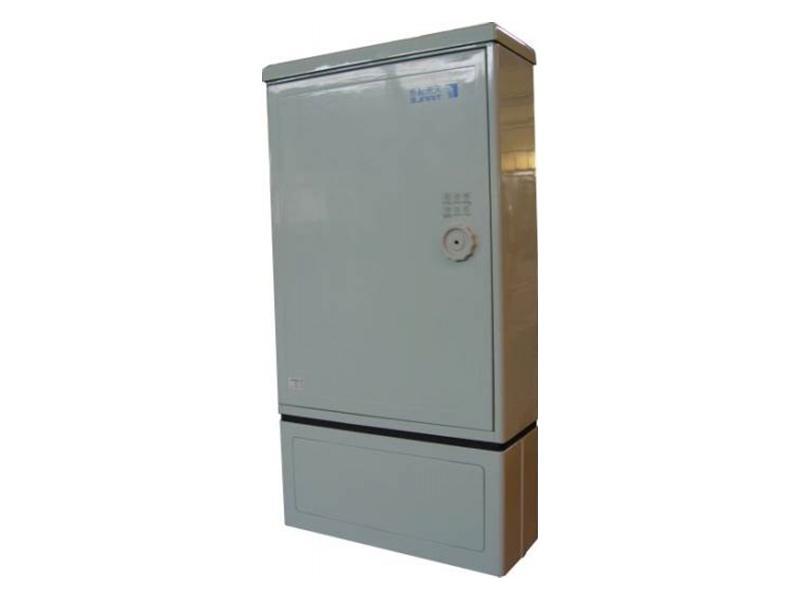

Optical fiber distribution hubs are constructed from unsaturated polyester glass fiber reinforcing materials (SMC) or high quality stainless steel plate. The steel plate is no less than 1.0. The surface is plastic coated to protect from corrosion. The coating color can be selected by the customer.
| Name | Dimensions /mm (height*width*depth) | Maximum load | Notes |
| HGGⅠtype optical fiber distribution hub (SMC box) | 960*590*320 | 96 leads | Floor model type and wall mounting type |
| 1034*560*300 | 144 leads | Floor model type and wall mounting type | |
| 1445*756*340 | 288 leads | Floor model type and wall mounting type | |
| 1579*758*600 | 576 leads | Double-faced floor model type | |
| 1553*1458*300 | 576 leads | One-sided floor model type | |
| HGGⅡtype optical fiber distribution hub (stainless steel plate box) | 700*600*300 | 96 leads | Wall mounting type |
| 1100*600*300 | 144 leads | Floor model type and wall mounting type | |
| 1450*760*300 | 288 leads | Floor model type and wall mounting type | |
| 1450*760*600 | 576 leads | Double-faced floor model type | |
| 1550*1460*350 | 576 leads | Double-faced floor model type |
Features of the optical fiber distribution hub
1. The optical fiber distribution hub is dust-protected and water-protected as it adapts the SMC box or stainless steel plate box of high quality. Moreover, the device achieves the protection level about IP65.
2. Optical fiber distribution hub has the function of optical fiber splice, wiring and cloud storage.

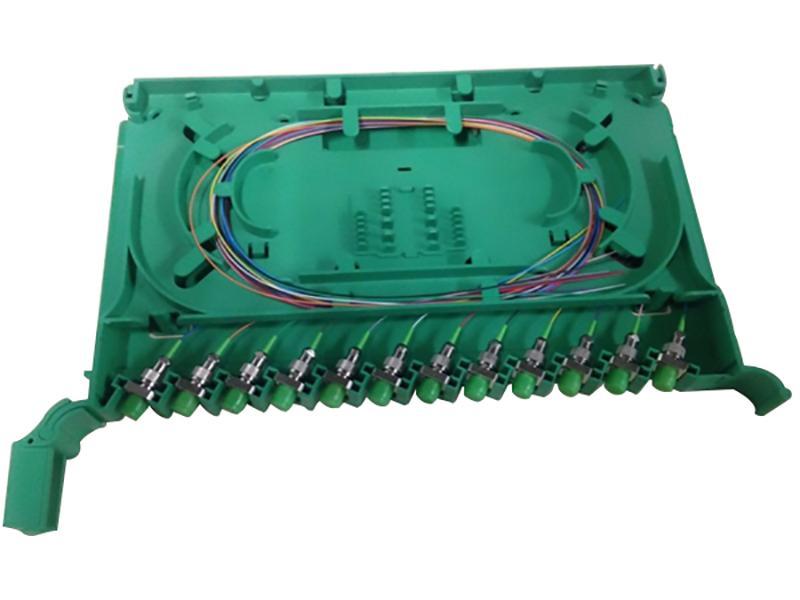

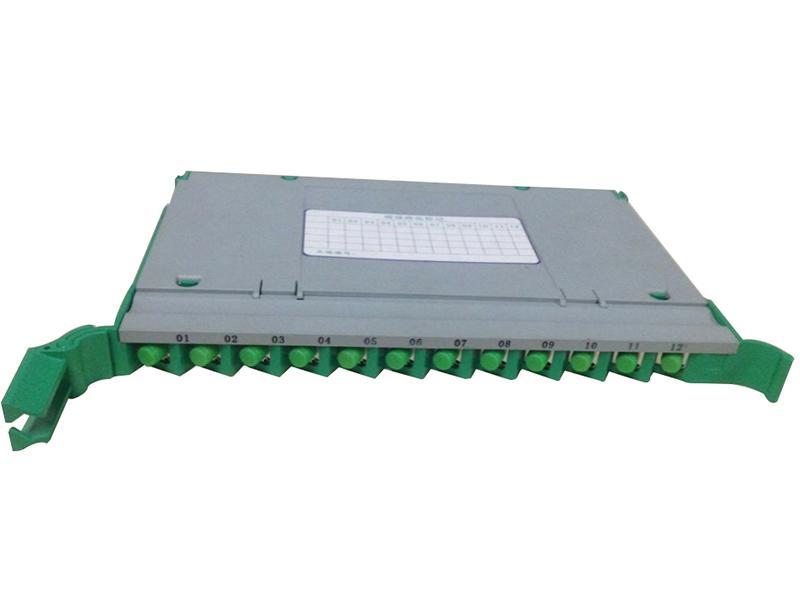

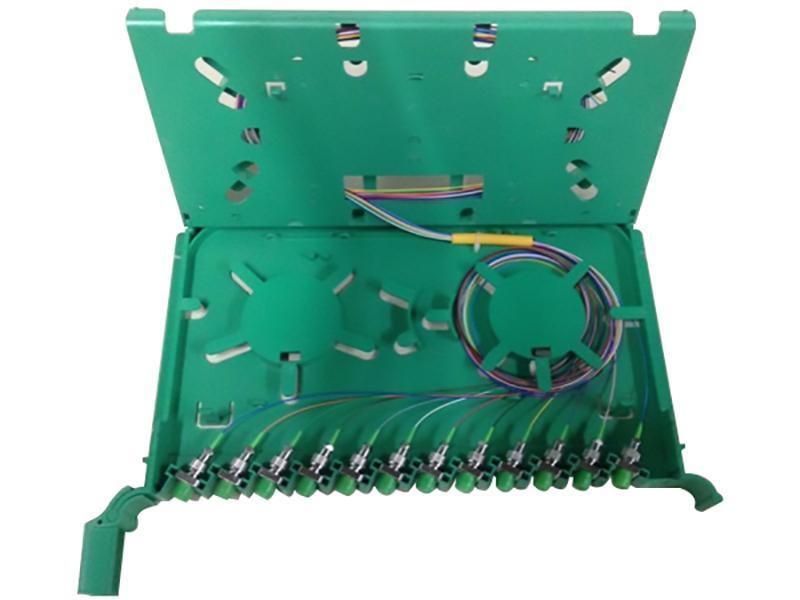

3. The link terminating unit of device can splice, connect and dispatch the optical fiber.
4. The trunk optical fiber cable and wiring optical fiber cable of the device are laid out separately and their marks are clearly. The cabling space of optical fiber patch cord is saved and patch cord is easily found.
5.The adapter of the optical fiber distribution hub uses the oblique angle clamping installation style, not only ensure the bending radius, but also protect the eyes from strong light.
6. To the device, both ribbon fiber and non-ribbon fiber are available.
7. The optical fiber distribution hub has fixation and ground protection devices of the optical fiber cable.
8. The device has enough optical fiber cable fixation and entry space, and can be redesigned according to the clients' requirements.
Hengchang is a well-qualified optical fiber communication equipment manufacturer since 1994, besides the FTTC optical fiber distribution hub, we are offering FTTX solutions like for FTTP optical fiber laid to the premises, FTTH fiber to the home, FTTB fiber to the building, etc. We have extensive experience in making data communication equipment, always provide quality FTTC distribution products for global customers.
