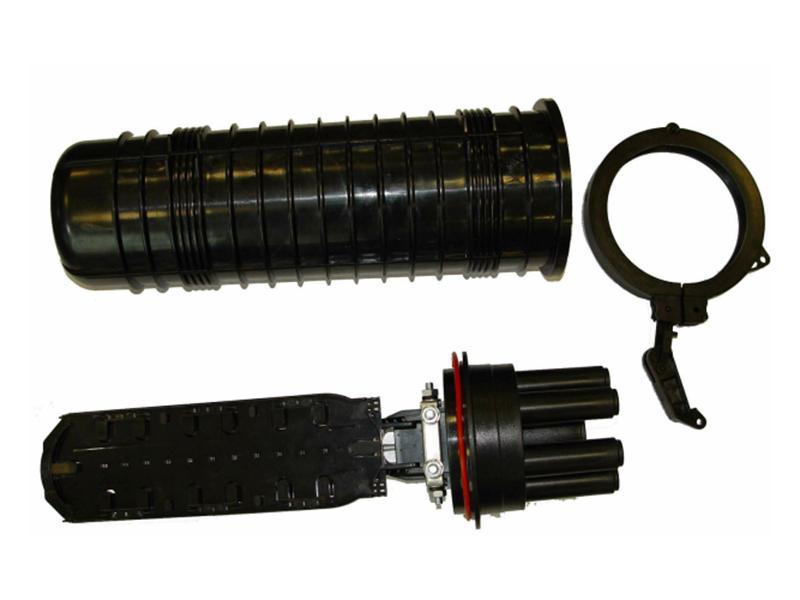

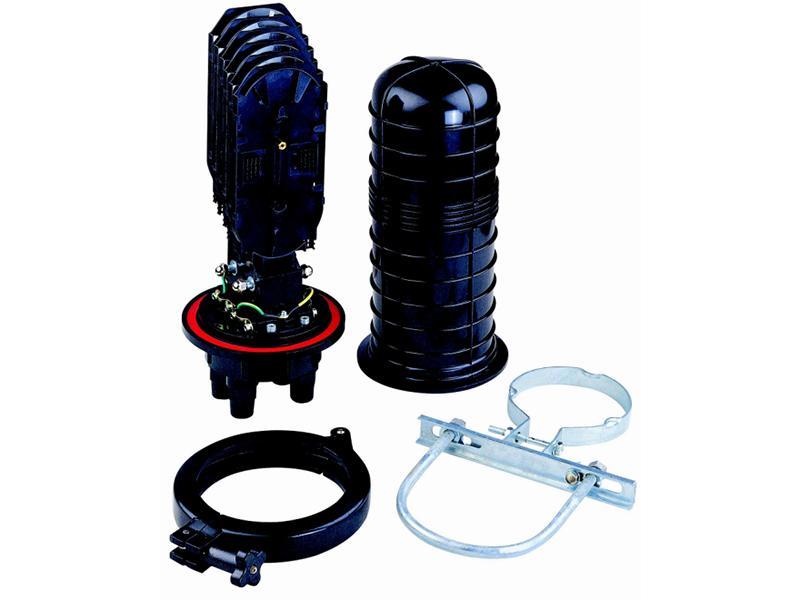

Application of the fiber optic splice closure
The fiber optic splice closure is intended for outdoor use and can connect more than two optical fiber cables with ease. The device is designed to adapt to different installation methods, like overhead pipes, direct burial, and manhole wiring. No matter the method, the splice closure protects the access network components. We can support fiber optic splice closures with 12-288 loads.

Materials of the fiber optic splice closure
The box of the fiber optic splice closure is made from high strength insulation reinforced plastic which is corrosion resistant and anti-aging.

Main technical indicator of the fiber optic splice closure
1. Sealability: The pressure(（100±5）KPa, can be sustained during 24 hours;
2. Environmental temperature: -40℃～+65℃
3. Environmental atmospheric pressure:70KPa～106KPa
4. Anti-stretch force: >1000N
5. Compressive strength: The fiber optic splice closure is able to stand the strength of 2000N/10cO within 1min;
6. Insulation resistance: >2×104MΩ

Features of the fiber optic splice closure
1. The fiber optic splice closure can removed and replaced repeatedly.
2. Both ribbon fiber and non-ribbon fiber are available.
3. Many installation structures are compatible.

Hengchang is a well-qualified optical fiber communication equipment manufacturer since 1994, besides the FTTC fiber optic splice closure, we are offering FTTX products and solutions like for FTTB fiber to the building, FTTP optical fiber laid to the premises, FTTH fiber to the home, etc. We have extensive experience in making data communication equipment, always provide quality FTTC distribution products for global customers.
